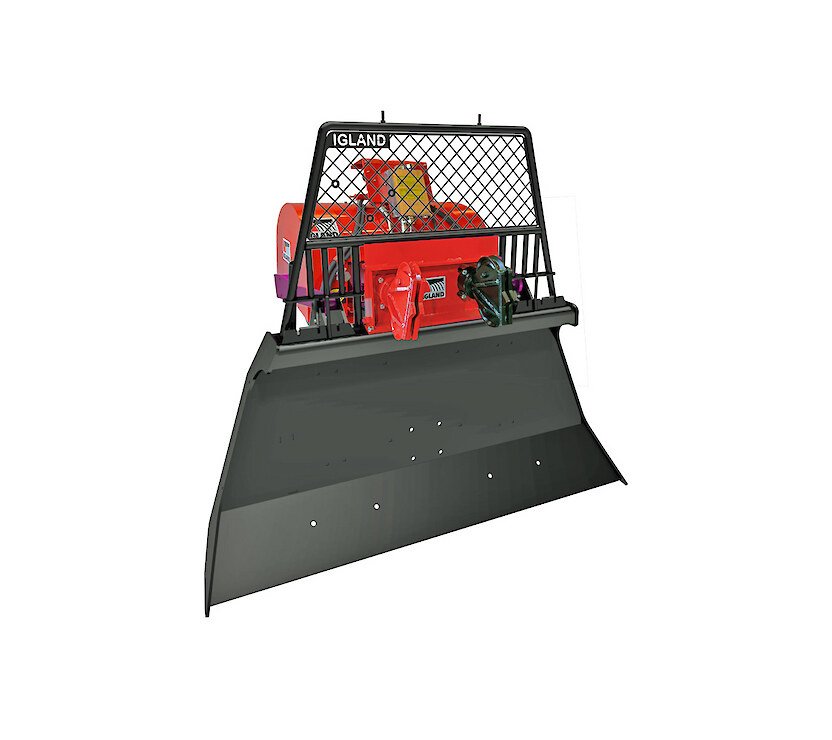

- Pulling capacity 90 kN (9 tons) x 2 drums
- Ideal for tractors 59 kW and stronger (80 hp and stronger)
- Automatic safety brake
- Mechanical control
- 3-point hitch as standard
- Weight 950 kg
- TLP Logging plate width 2,20 meters/1,10 meters hight
- Cable guard prevents derailment
- Radio control is optional
- High-capacity drum
- Good spooling characteristics
- Double clutch on each drum
- Propeller port with double sheaves and wire guidance
- Electrohydraulic high pressure operation with self-contained hydraulics is standard
- Worm gear for excellent power in slow operation
- Maintains high pressure during winching
Specifications
- Max pulling capacity / empty drum: 90 kN (9 tons) each drum
- Max pulling capacity / full drum: 44,4 kN (2,65 tons)
- Number of drums: 2
- Wire rope, theoretical capacity: 92 m, 14 mm (ISO 6687)
- Recommended wire rope length: 50 m, 12 mm
- Pulling speed at 540 rpm: 0,30 – 0,61 m/s
- Ratio: 1:19,5
- Necessary power input: 33,8 kW (ISO 6687)
- Braking power: Min 112,5 kN (11,3 tons)
- Controls: Electrohydraulic high pressure operation with self-contained hydraulics, 13-poles
- Clutch: Double friction plate
- Brake: Automatic safety brake
- Mounting: 3-point hitch
- PTO input, distance from ground: 58 cm
- Height/ Width/ Depth: 185 / 220 / 95 cm
- Weight (without wire rope): 950 kg
