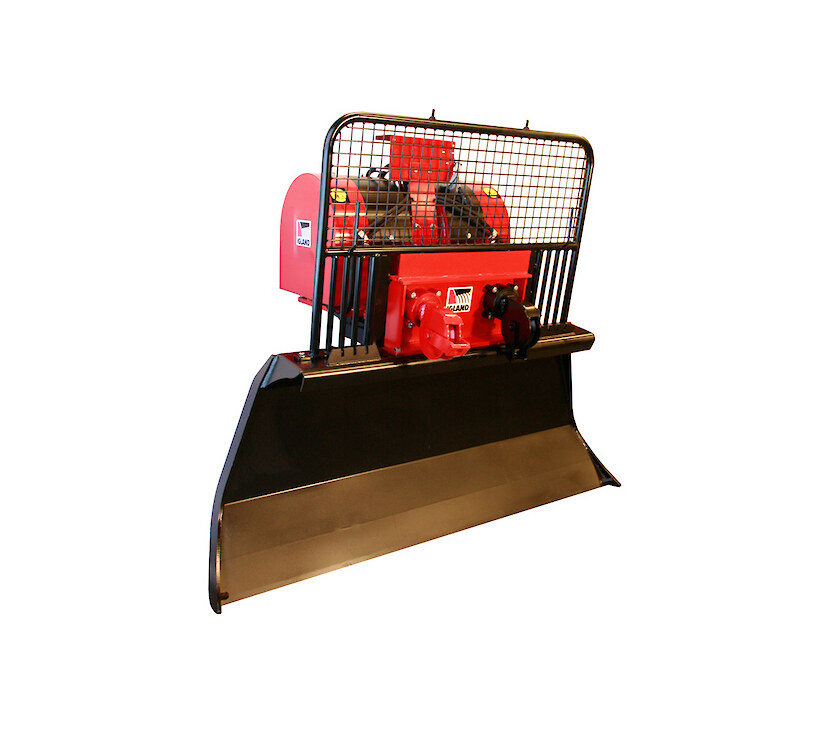

- Pulling capacity 50 kN (5 tons) x 2 drums
- Ideal for tractors 52 to 81 kW (70 - 110 hp)
- Automatic safety brake
- 3-point hitch as standard
- Weight 683 kg
- Logging plate width 2,05 meters
- Cableguard prevents derailment
- Radio control is optional
- Electrohydraulic LH
- High-capacity drum
- Good spooling characteristics
- Propeller port with single sheave and wire guidence
- Worm gear gives excellent power in slow operation
Specifications
- Max pulling capacity / empty drum: 50 kN (5 tons) each drum
- Max pulling capacity / full drum: 26,5 kN (2,65 tons)
- Number of drums: 2
- Wire rope, theoretical capacity: 118 m, 11 mm/ 97 m, 12 mm (ISO 6687)
- Recommended wire rope length: 50 m, 11 mm
- Pulling speed at 540 rpm: 0,59 – 1,12 m/s
- Ratio: 1:9,7
- Necessary power input: 37 kW (ISO 6687)
- Braking power: Min 62,5 kN (6,25 tons)
- Controls: Electrohydraulic LH, 13-poles
- Clutch: Single friction plate
- Brake: Automatic safety brake
- Mounting: 3-point hitch
- PTO input, distance from ground: 38 cm
- Height/ Width/ Depth: 161 / 205 / 93 cm
- Weight (without wire rope): 683 kg
