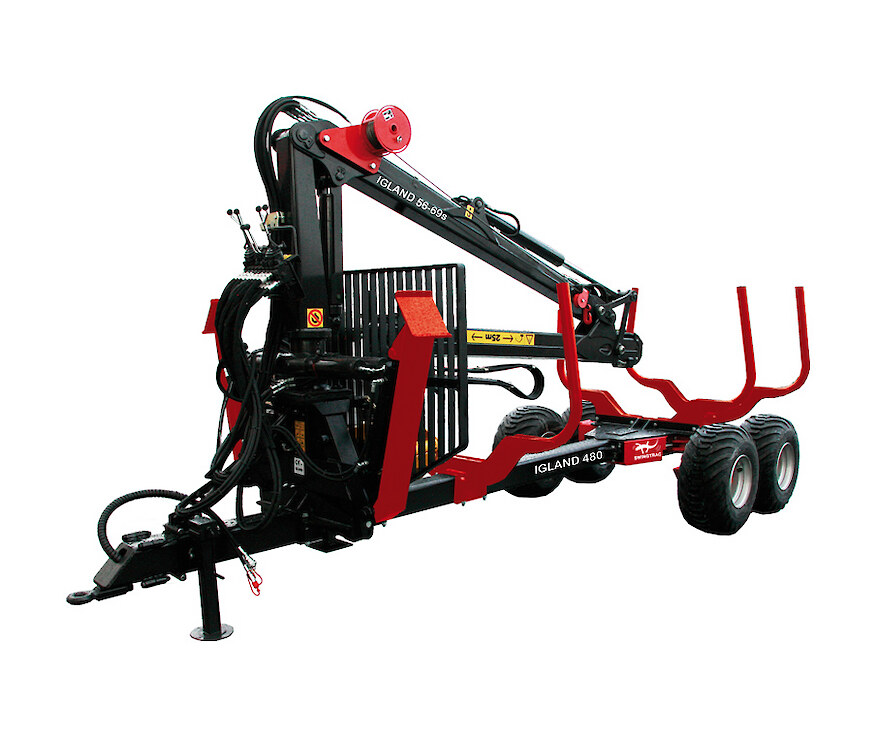

IGLAND 480 features 9,5 ton load capacity on trailer and is delivered fully equipped. Our timber trailers are equipped with a crane, rotator and grapple. The crane is detachable and can be mounted on the 3-point hitch linkage of the tractor and is equipped with hydraulic fold-down stabilizer legs. The bogie is equipped with tyre dimensions: 400 / 60 - 15,5 / 14 layer, 2 log retaining posts, one fixed and one adjustable. Loader and protection grill are adjustable. Bogie steering, Swingtrac system and disc brakes on two wheels and wiring for taillight board are standard.
Specifications
- Length/ Width: 6.42/2.2 meters
- Hydr.pressure. Max/ min: 210/160 bar
- Tire dimensions: 400/60 - 15.5/14 layer
- Max swivel angle: 50 degrees
- Swivel force at 210 bar: Aprox. 4,0 tonns
- Load capacity: 9500 kg
- Total Weight: 11 000 kg
- Weight of trailer without crane: 1645 kg
- Loading length: 4.5 meters
- Brakes: Disc brakes on 2 wheels
- Ground clearance: 52 cm
- Number of log retaining posts: 2 pair
- Hydraulic drive power 1,6 tons/ 175 bar: Optional
- Swingtrac: Yes
- PVG steering with joysticks: Optional for 56-69S, 65-85SS
- Crane selections: 49-68s. 56-69S
